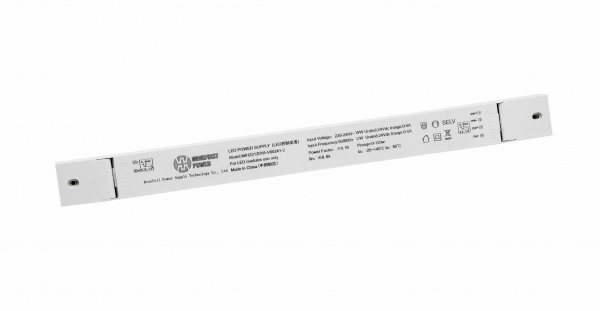

Linear Isolated Smart CCT CV Driver 0623

Linear Isolated Smart CCT CV Driver 0623

Indoor

Type: class II,SELV
Dimming mode: RF / Bluetooth / Zigbee / 2.4G
Dimming range:1‰
Support Protection: short circuit / over load / under voltage
Ingress of Protection:IP20
Start-up Time:<1s
Operating Temperature:-20℃~45℃
Warranty: 5/7 years
Certificates: CCC/EAC/CE
Application: Strip Lights

Price Interview

Price Interview

Sales Count Click

Sales Count

Click

Linear Isolated Smart CCT CV Driver 0623

Interview

Select the number of specifications

Please check the product information you want!

Product Detail

Code

Item.No

Rated

 Power

Input

Voltage

Output

Voltage

Output

Current

PF

Effiency

Dimensions(L*W*H)

Ripple(%)

Downloads

0623

MIHZ2060YA-V00241-2

60W

220-240V

24V

0-2500mA

≥0.95

≥89%

345*30*18mm

＜5%



0695

MIHZ2120YA-V00241-2

120W

220-240V

24V

0-5000mA

≥0.95

≥90%

345*30*18mm

＜5%



0704

MIHZ2240YA-V00241-2

240W

220-240V

24V

0-10000mA

≥0.95

≥91%

396*40*22mm

＜5%






No comment

Previous : Linear Non-isolated Smart CCT CC Driver 0660 Next : Linear Isolated DALI CV Driver 0830
Product Detail

Code

Item.No

Rated

 Power

Input

Voltage

Output

Voltage

Output

Current

PF

Effiency

Dimensions(L*W*H)

Ripple(%)

Downloads

0623

MIHZ2060YA-V00241-2

60W

220-240V

24V

0-2500mA

≥0.95

≥89%

345*30*18mm

＜5%



0695

MIHZ2120YA-V00241-2

120W

220-240V

24V

0-5000mA

≥0.95

≥90%

345*30*18mm

＜5%



0704

MIHZ2240YA-V00241-2

240W

220-240V

24V

0-10000mA

≥0.95

≥91%

396*40*22mm

＜5%






Linear Isolated Smart CCT CV Driver 0623
Type: class II,SELV
Dimming mode: RF / Bluetooth / Zigbee / 2.4G
Dimming range:1‰
Support Protection: short circuit / over load / under voltage
Ingress of Protection:IP20
Start-up Time:<1s
Operating Temperature:-20℃~45℃
Warranty: 5/7 years
Certificates: CCC/EAC/CE
Application: Strip Lights
