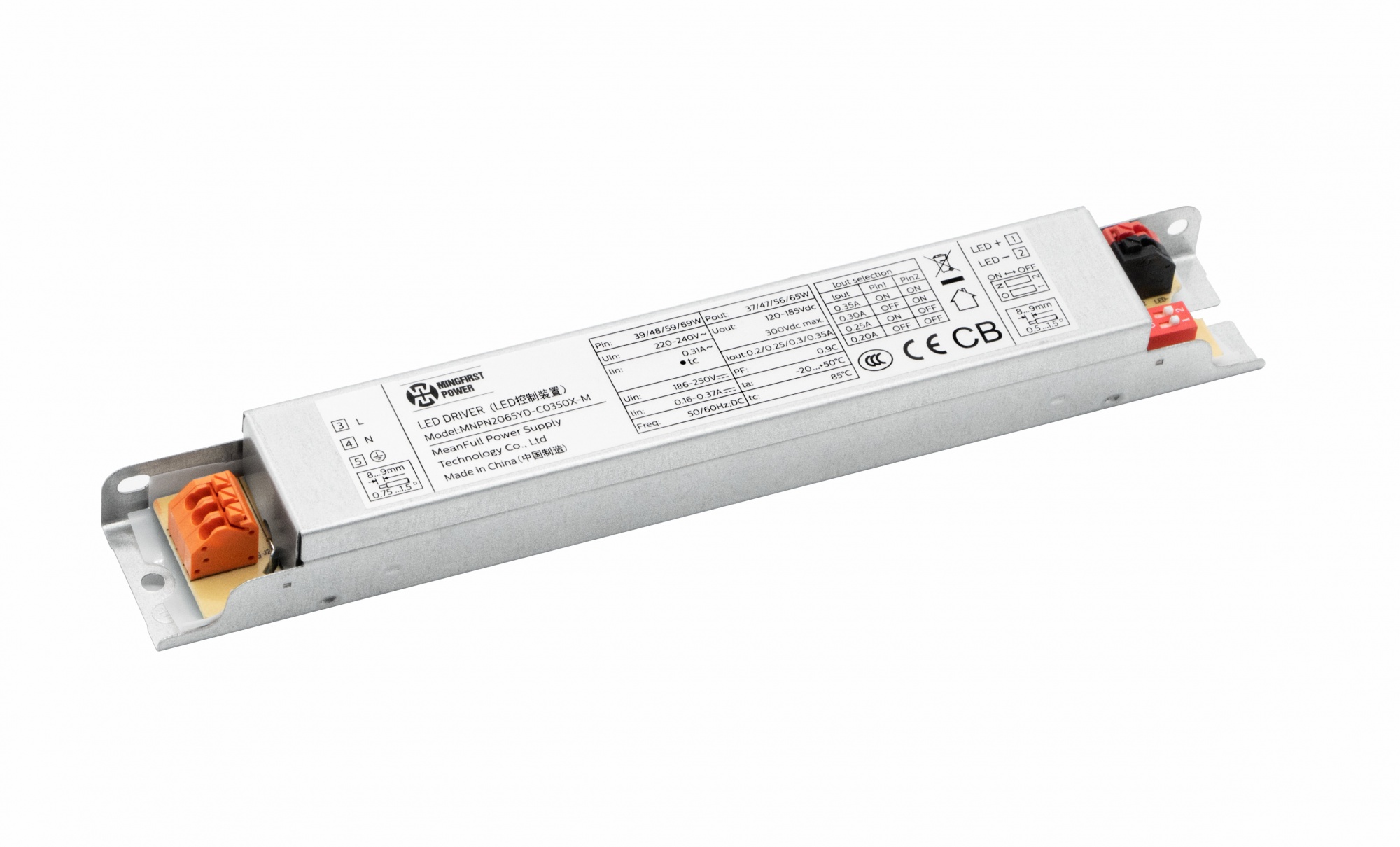

Linear Non-isolated Adjustable Current Driver 0655

Linear Non-isolated Adjustable Current Driver 0655

Indoor

Type:Iron Housing, adjustable Current
Support Protection: short circuit / over load /under voltage
Ingress of Protection:IP20
Start-up Time:<0.5s
Operating Temperature:-20℃~45℃
Surge:DM 1Kv
Warranty: 7 years
Certificates: CCC/CE/EAC
Application: Tri-proof Lights/ Liner Lights
Feature:Adjust output current via the DIP switch (optional）

Price Interview

Price Interview

Sales Count Click

Sales Count

Click

Linear Non-isolated Adjustable Current Driver 0655

Interview

Select the number of specifications

Please check the product information you want!

Product Detail certificate

Code

Item.No

 Rated Power

Input Voltage

Output Voltage

Output Current

PF

Effiency

Dimensions(L*W*H)

Ripple(%)

Downloads

0655

MNHN2019YD-C03501-M

19W

176-264V

30-54V

350/300/250/200mA

>0.9

≥85%

124*30.2*21.5mm

＜5%



0655

MNHN2018YD-C03251-M

18W

176-264V

30-54V

350/325/310/290mA

>0.9

≥85%

124*30.2*21.5mm

＜5%

0655

MNHN2017YD-C03101-M

17W

176-264V

30-54V

325/310/290/270mA

>0.9

≥85%

124*30.2*21.5mm

＜5%

0655

MNHN2016YD-C02901-M

16W

176-264V

30-54V

310/290/270/250mA

>0.9

≥85%

124*30.2*21.5mm

＜5%



0655

MNHN2015YD-C02701-M

15W

176-264V

30-54V

290/270/250/235mA

>0.9

≥85%

124*30.2*21.5mm

＜5%



0655

MNHN2014YD-C02501-M

14W

176-264V

30-54V

270/250/235/215mA

>0.9

≥85%

124*30.2*21.5mm

＜5%



0656

MNHN2065YD-C03501-M

65W

176-264V

120-185V

350/300/250/200mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0656

MNHN2065YD-C03501-A

65W

176-264V

120-185V

350/325/300/270mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0656

MNHN2060YD-C03251-M

60W

176-264V

120-185V

325/300/270/245mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0656

MNHN2056YD-C03001-M

56W

176-264V

120-185V

300/270/245/215mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0656

MNHN2044YD-C03501-M

44W

176-264V

76-125V

350/300/250/200mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0656

MNHN2044YD-C03501-A

44W

176-264V

76-125V

350/320/285/265mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0656

MNHN2040YD-C03201-M

40W

176-264V

76-125V

320/285/265/240mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0656

MNHN2036YD-C02851-M

36W

176-264V

76-125V

285/265/240/215mA

≥0.9

≥87%

168*30.2*21.5mm

＜5%

0676

MNHN2060YD-C05001-M

60W

176-264V

80-120V

350/400/450/500mA

≥0.9

≥87%

210*30.2*21.5mm

＜5%



0676

MNHN2083YD-C07201-M

83W

176-264V

90-115V

560/620/670/720mA

≥0.9

≥88%

210*30.2*21.5mm

＜5%



0727

MNHN2126YD-C1050-M

126W

176-264V

95-124V

900/940A/1000A/1050mA

≥0.9

≥88%

320*30*21.5mm

＜5%



0727

MNHN2173YD-C1450-M

173W

176-264V

95-124V

1300/1350/1400/1450mA

≥0.9

≥88%

320*30*21.5mm

＜5%


Certification: CCCC/CE/EAC
